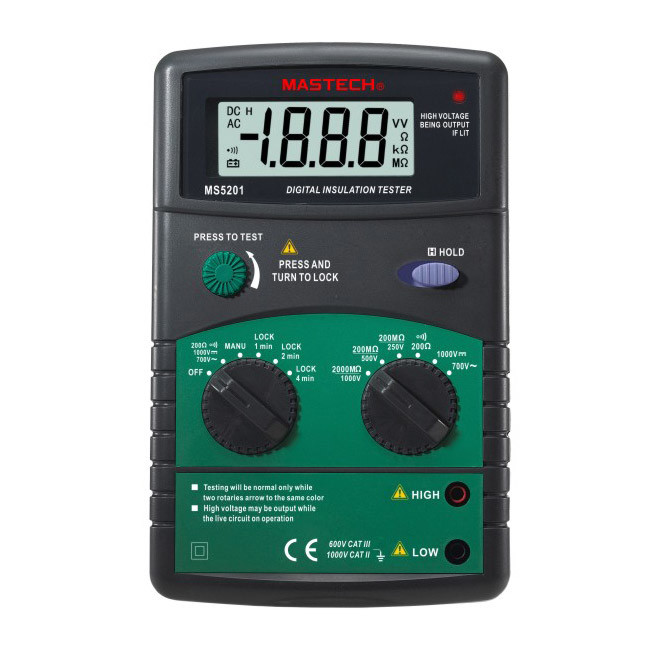

Mastech MS5201 Digital Insulation Tester

Name: Mastech MS5201 Digital Insulation Tester
Brand: Petra Mechatronics
SKU: 3465
Price: 385 AED
Availability: InStock
Rating: 5 (1 reviews)

Sale!

MS5201 is a portable professional measuring instrument with large LCD.

With sound and flash alarm, to protect the meter from the damage by operation improperly. Overload protection and low battery indication are provided as well.

Features:

Display: 2000 counts
Continuity Buzzer: <50Ω
Date Hold
Low Battery Display
LOCK: Constant Measuring Lock

Model Number	Range
MS5201	1000V DC or AC

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

MS5201 is a portable professional measuring instrument with large LCD. With sound and flash alarm, to protect the meter from the damage by operation improperly. Overload protection and low battery indication are provided as well. Overview:

Max. Voltage Between Terminals And Earth Ground: 1000V DC or AC
Measuring method: Dual-slope integration A/D converter
Sampling Time: approx. 0.4 second
Display: 22mm LCD
Show Value: 1999 (3 1/2)
Polarity Indication: ‘-’indicates negative polarity.
Overrange Indication: Display ‘1’ or ‘-1’
Unit showing: showing of function and electrical capacity.
Power Supply: 1.5V×6 (size AA) batter (recommended to use the alkaline or heavy duty battery.)
Power Consumption:
5mA（DC1000V、AC750V、200Ω、）
30mA（200MΩ/250V）
50mA（200MΩ/500V）
100mA（2000MΩ/1000V）
Low Battery Indication: ‘’ displayed
Operating Temperature: 0℃ to 40℃（32°F to 104°F）
Operating Humidity: ≤85%RH
Storage Temperature: -10℃ to 50℃（10°F to 122°F）
Dimension: 192×122×55 mm
Weight: Approx. 545g（including battery)
Certificate: CAT III 1000V/CAT III 600V RoHS

Specification	Range	Resolution	Accuracy
AC Voltage	700V	1V	+-(1.2%+5)
DC Voltage	1000V	1V	+-(0.8%+3)
Resistance	200Ω	0.1Ω	+-(1.0%+3)
Insulation Resistance
Range	200MΩ/250V	200MΩ/500V	2000MΩ/1000V
Test Voltage	DC 250V +-10%	DC 500V +-10%	DC 1000V +-10%
Measuring Ranges	0~200MΩ	0~200MΩ	0~2000MΩ
			0MΩ~1000MΩ	1000MΩ~2000MΩ
Accuracy	+-(3%+5)	+-(3%+5)	+-(3%+5)	+-(5%+5)
Output Voltage
Range	200MΩ/250V	200MΩ/500V	2000MΩ/1000V
Output Voltage on Open Circuit	250V +-10%	500V +-10%	1000V +-10%
Minimum Output Voltage	225V at 0.25MΩ	450V at 0.5MΩ	900V at 1MΩ
Test Current (approx.)	1mA at 0.25MΩ	1mA at 0.5MΩ	1mA at 1MΩ
Output Voltage Circuit Current	≤2.5mA
