Shimadzu BL Series Precision Balances

Name: Shimadzu BL Series Precision Balances
Brand: Petra Mechatronics
SKU: 2774
Availability: InStock
Rating: 5 (1 reviews)

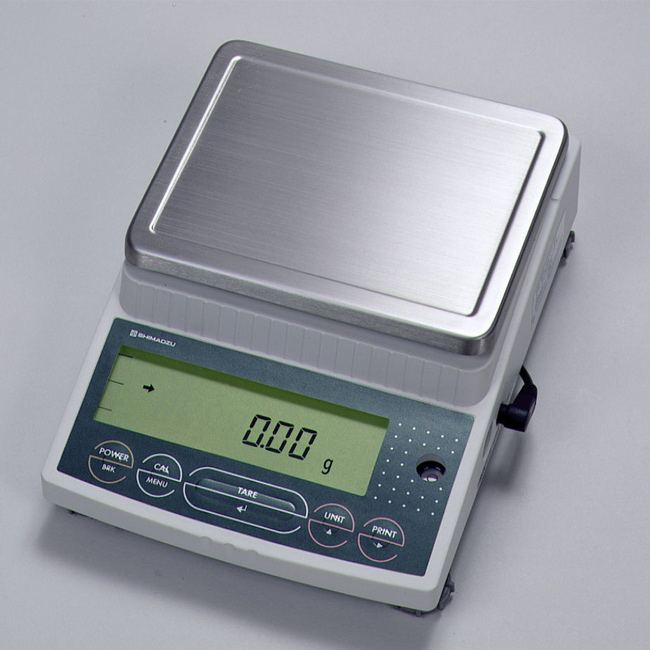

The Shimadzu BL Precision balances are high-resolution weighing scale made affordable. Used as laboratory scale and gold weighing scale. Its a weight measuring instrument that you can trust its result. The Shimadzu BL services also come as density weighing machine with a special kit for that.

Features:

Precision Scale
Piece counting Function
Analog bar display
LCD display with adjustable contrast and illumination
Check-weighing and Fill-in functions
Function: TARE, Zero, Auto Zero, multi weighing units, PCS counting, print, percentage mode
Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc.
Continuous data output function
Tray: Stainless Steel 160×124 mm
Power Adapter : AC adapter; 90V−264V, -15%−+10%, 50/60Hz

Model Number	Capacities	Division
BL3200H	3200 gm	0.01 g

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

Very fast response for operator comfort and efficiency. Even if the environmental conditions are not ideal for precision weighing, the high stability mode of BL Series produces steady readings. Offers ease of operation. You can buy this scale with its optional thermal receipt printer that makes you able to print reports. Quantity can be read as soon as parts are placed on the pan. To set, just load ten pieces and press the key. Pressing the key at 20, 50, or 100 pieces will produce even greater precision, especially for smaller parts. Switching between piece counting and gram display is a single key-touch.

Quick response
High stability
Piece Counting function
Analog Bar Graph Display
Easy unit conversion
Equipped with a square pan

Model	BL3200H
Capacity x Readability	3200g / 0.01 gm
Repeatability	σ≤0.01g
Linearity	±0.03g
Response Time	1.0−1.2 sec.
Ambient Temperature	+ 5°C – +40°C / 41−104°F
Temperature Coefficient Sensitivity (ppm/C)	±5ppm/°C (10−30°C)
Keys	Power, CAL/Menu, Tare / Enter, Print, Unit
Functions	Piece Counting, Analog Bar display, Percentage Mode, Unit Conversion
Display & Size	LCD
Weight Units	g, kg, ct, mom, %, pcs, Lb, Oz, Ozt, tl, dwt, GN, t, d
Power	AC adapter; 90V−264V, -15%−+10%, 50/60Hz
Pan Size	160×124 (mm)
Standard Accessories	Protective in-use cover
Dimensions (mm)	170W×240D×75H mm
Product Weight (approx.)	2.2 Kg

AC Adaptor for EP-80/90
Electronic Printer EP 80 / 90
IF-102A – RS232C Interface
