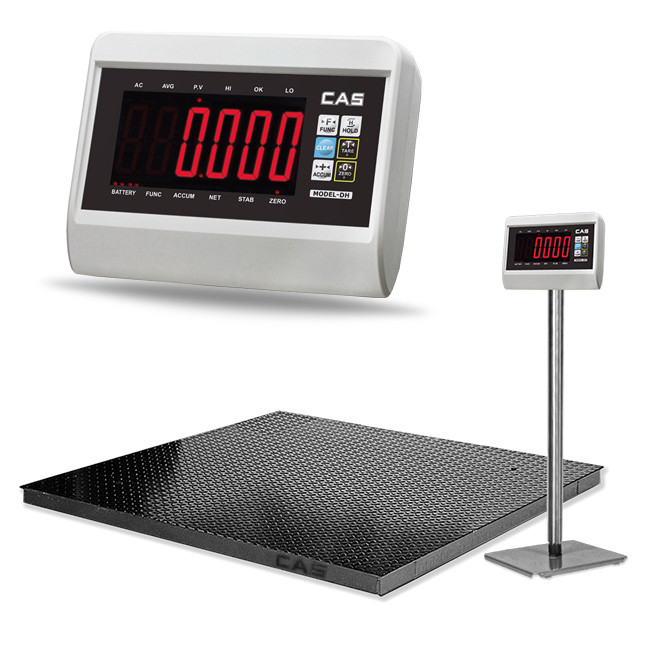

CAS DH Floor Scale

Name: CAS DH Floor Scale
Brand: Petra Mechatronics
SKU: 3080
Availability: InStock
Rating: 5 (1 reviews)

CAS DH Floor Scale

( Floor Scales | Heavy Duty Weighing Scales | Large Platform Scales )

DH Series is an advanced Floor scale with high resolution and various functions. It is suitable for use in all type of heavy industries.

Features:

Floor Scale with Large LED Display
Available Capacities: from 1 Ton to 10 Ton
Display: Extra Large (XL) LED 51mm
Body Structure:
Heavy duty, low profile, single deck, powder coated mild steel
Indicator: ABS Plastic
Functions: Hold, Accumulation, TARE, Zero, Check Weight with alarm, Auto Calibration, Auto Zero, livestock stabilization, Illumination Level, Auto off
Interface: Serial RS232
Load Cells: 4 nos. of standard OIML alloy steel shear beam type
Legs: 4 height adjustable swivel chromed steel and rubber feet
Adjustable Rubber Corner Legs
Structure Safe Maximum load 100%
Checkered Upper Platform 5mm
Powder Coated Steel Structure
Metal Shielded Cable 5 meter
Steel indicator Stand
Built in Junction Box
AC 110-240v with rechargeable battery
Over Load Protection

ADD TO CART to buy or to Request for Quotation (RFQ)

CAS DH Floor Scale->DH-1010-1 / 1.0x1.0 m / Min 1 Kg to Max 1 ton / 100gm

CAS DH Floor Scale->DH-1010-3 / 1.0x1.0 m / Min 2 Kg to Max 3 ton / 200gm

CAS DH Floor Scale->DH-1212-3 / 1.2x1.2 m / Min 2 Kg to Max 5 ton / 200gm

CAS DH Floor Scale->DH-1212-5 / 1.2x1.2 m / Min 5 Kg to Max 5 ton / 500 gm

CAS DH Floor Scale->DH-1515-5 / 1.5x1.5 m / Min 5 Kg to Max 5 ton / 500 gm

CAS DH Floor Scale->DH-2020-5 / 2.0x2.0 m / Min 5 Kg to Max 5 ton / 1 Kg

CAS DH Floor Scale->DH-2020-10 / 2.0x2.0 m / Min 5 Kg to Max 10 ton / 1 Kg

GET QUOTATION

CAS DH – Floor Weighing Scales ( Floor Scales | Platform Scales | Floor Weighing Scales | heavy Duty Scales | Large weighing machines)

In general floor scales are industrial weighing scale (heavy duty) that also called as large weighing scale or large weighing machine The floor scale as a system contain 4 units of shear beam load cells connected to a a junction box and weighing indicator It’s Ideal to be used for weighing in logistics such as shipping & freight, warehousing, manufacturing, packaging. With fast speed and high precision, A/D conversion technology, the DH weighing indicator is suitable for either a bench platform scale, floor scale or any static check-weighing system that is equipped with 1~4 load cells. With a built-in rechargeable battery. Wide range of Platform sizes helps the customer to choose according to their requirements.

Large LED Display
72 Hrs of continuous use (6V4Ah Sealed Batteries)
Available capacities: 1000,3000, 5000, 10,000 KG
Large Display
Check-weighing function with alarm for Hi & Lo
1/3,000 External resolution
10 times/sec A/D conversion speed
Built-in rechargeable battery
Communication interface: RS-232C & Current loop
Lb/kg switchable
Hold,
Accumulation
TARE
Zero
Counting
Auto Calibration
Auto Zero
Human and Animal stabilize weighing
Load Cells: 4 nos. of standard OIML alloy steel shear beam type
Legs: 4 height adjustable swivel chromed steel and rubber feet
Adjustable Rubber Corner Legs
Structure Safe Maximum load 100%
Checkered Upper Platform 5mm
Powder Coated Steel Structure
Metal Shielded Cable 5 meter
Steel indicator Stand
Built in Junction Box
Legal for trade
Great for all type of Industries

Petra ME | Floor Scales Suppliers : Regional Sales & Services

Floor Scales – UAE

Petra as Floor Scales Suppliers – UAE: if you are looking to find and buy a electronic and digital floor scales with different sizes and capacities Petra will provide you the best value and service . also we offer sales & service of floor scales with wash-down water-resistance types that comes with stainless steel construction As we are a main floor scales suppliers in UAE, we also do sales, service, repair, calibration and provide spare parts to all types of floor weighing machine in Dubai | Sharjah | Abu Dhabi | Ajman | Ras Al Khaimah (RAK) | Al Ain | Fujairah | Umm al-Quwain (UAQ).

Foor Scales – Dubai

and we offer same day delivery to Dubai including JAFZA (Jabel Ali Free Zone)

Floor Scales – Oman

Model	DH 1010-1	DH 1010-3	DH 1212-3	DH 1212-5	DH 1515-5	DH 2020-5	DH 2020-10
Capacity x Readability	1000 Kg 100 gm	3000 Kg 200 gm	3000 Kg 200 gm	5000 Kg 500 gm	5000 Kg 500 gm	5000 Kg 1 kg	10,000 Kg 1 kg
External Resolution	1/3,000
Loadcell Excitation voltage	DC 5V
Loadcell connection(350 Ω)	Max. 4ea
Input signal range	-19mV ~ 19mV
Digits	6 digits (weight)
Display	LED 51 mm Height
A/D Conversion speed	10 times/sec
Load Cell	4 nos. of standard OIML alloy steel shear beam type
Keys	6 Keys : Func, Hold, Clear, Tare, Zero, Accumulation
Functions	Hold, Accumulation, TARE, Zero, Kg/Lb., Counting, Auto Calibration, Auto Zero, Human and Animal stabilize weighing
Interface	RS-232C Current loop
Operating Temp	0˚C ~ 40 ˚C
Power	DC 6V4Ah rechargeable battery, AC220V / 50, 60Hz
Battery Life Time	Approx. 30 hours
Battery charging time Approx.	Approx. 15 hours
Platter Size (CM)	1×1	1×1	1.2×1.2	1.2×1.2	1.5×1.5	2.0×2.0	2.0×2.0
Product Weight (approx.)	75 kg	75 kg	85 kg	85 kg	100 kg	125 kg	150 kg
Warranty	1 Year

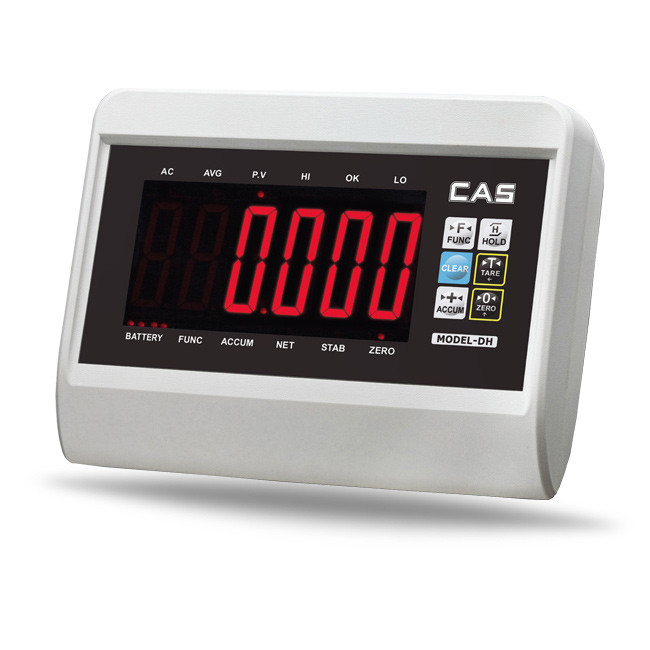

Indicator Stand
Metal Shielded Cable

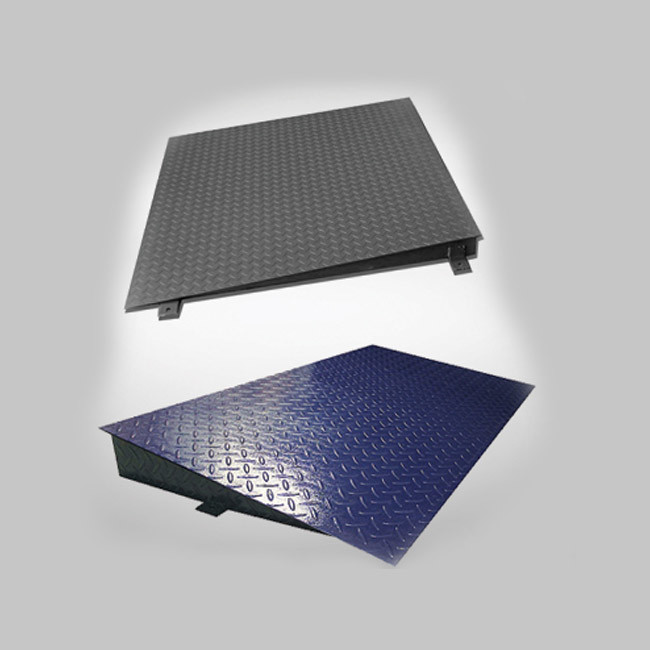

Ramps
Pallet Trolley
Test Weights
