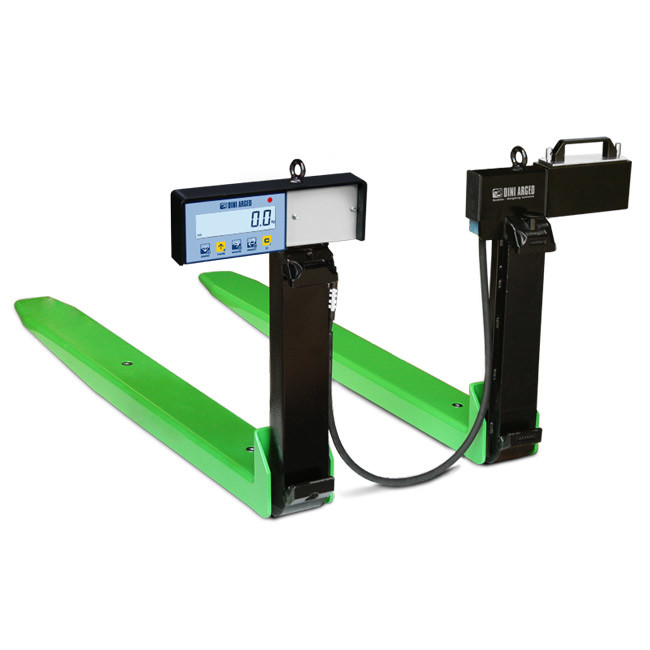

Dini – LTF Series Weighing

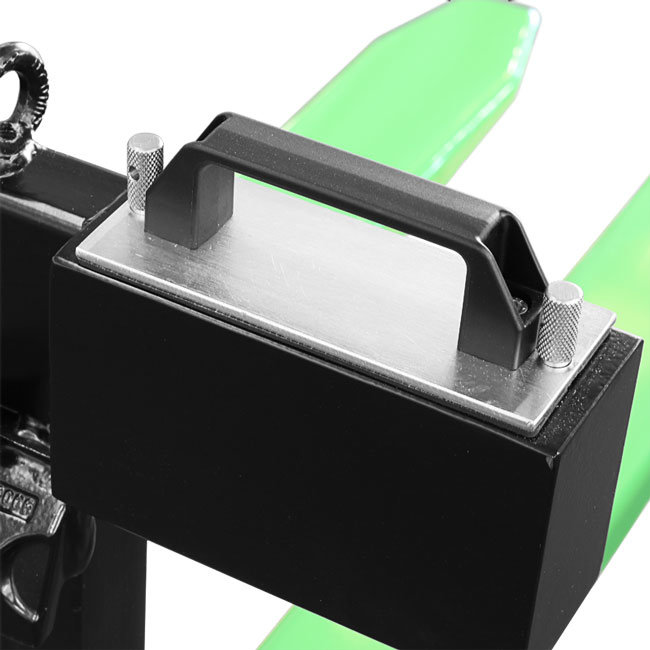

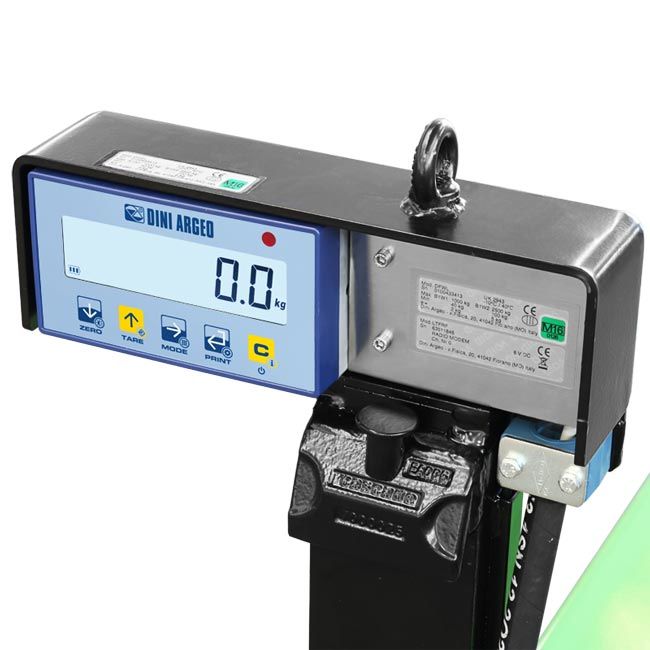

Weight indicator is integrated with weighing forks, with waterproof 5-key numerical/functional keypad, 25mm backlit LCD display with 6 high contrast digits, protected by a thick steel case. Overall IP rating: IP65. IP68 load cells. Digital Calibration and Set-Up via keypad or PC with DINITOOLS. Power at the forks provided by a rechargeable battery with an operating time of about 40 hours or continuous use via an additional battery kit (optional). Programmable automatic switch-off. Battery charger supplied. The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board. Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password. These quick access keys to the menus can be blocked by configuring a dedicated password. The user can select the operating modes directly using the dedicated key*: -High resolution display x 10 – Net/Gross – lb to kg converter – Metre counter, litre counter function etc., with free conversion factor – Weight totalising – Formula weighing – +/- Checkweighing with quick target and threshold input – Percentage weighing – Percentage batching with programmable target – Piece counter – Hold
