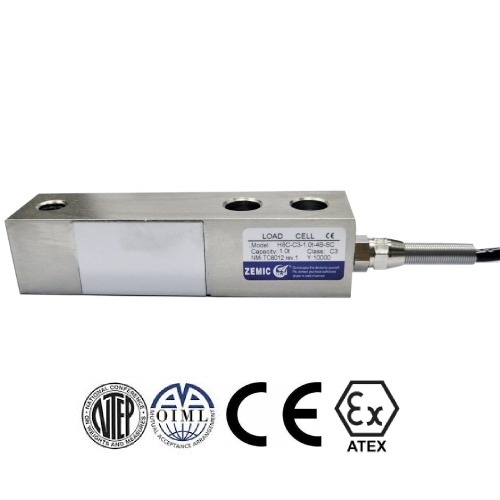

H8C nickel plated alloy steel shear beam load cell

Name: H8C nickel plated alloy steel shear beam load cell
Brand: Petra Mechatronics
SKU: 5804
Availability: InStock
Rating: 5 (1 reviews)

The H8C shearbeam load cell is a Class 3 and OIML R60 approved electrical weight measuring device that offers total protection against liquids.

Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, with 4 core screened cable suitable for all kinds of environment.
Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
Safe and anti-explosive product, can be used in atrocious environment and hazardous areas
Low profile.
With OIML, NTEP approval.

ADD TO CART to buy or to Request for Quotation (RFQ)

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-100kg /100 Kg / C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-200kg /200 Kg / C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-500kg /500 Kg / C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-1t /1 Ton/ C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-1.5t /1.5 Ton/ C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-2t /2 Ton/ C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-2.5t /2.5 Ton/ C3

H8C nickel plated alloy steel shear beam load cell ->H8C-C3-5t /5 Ton/ C3

GET QUOTATION

Zemic’s H8C shear beam load cells are highly-versatile, easy-to-install weighing scale load cells ideal for monitoring and converting force into a measurable output. The H8C load cell series is a highly popular and versatile product that can be used within multiple components with medical, automotive and agricultural machinery installations. The H8C series is constructed from durable nickle-plated alloy steel with IP67-rated protection against dust and water ingress, making them suitable for use in harsh industrial environments. This load cell is supplied with a 4m (4 core screened cable) length.

Accuracy class		OIML R60 C3	OIML R60 C4	OIML R60 C5
Output sensitivity ( = FS )	mV/V	3.0 ± 0.003
Maximum capacity ( Emax )	t	0.1, 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 10		0.1, 0.25, 0.5, 0.75, 1, 1.5, 2, 2.5		3, 5, 10
Max. number of load cell intervals	nLC	3000	4000	5000
Ratio of min. LC verification interval	Y = Emax / vmin	10000	15000	20000		18000
Combined Error	%FS	≤± 0.023	≤± 0.0175	≤± 0.014
Minimum dead load	Of Emax	0%
Safe overload	of Emax	150 %
Ultimate overload	of Emax	300 %
Zero balance	of FS	< ± 1.0 %
Excitation, recommended voltage	V	5 ~ 12
Excitation maximum	V	18
Input resistance	Ω	350 ± 3.5
Output resistance	Ω	350 ± 3.5
Insulation resistance	MΩ	≥5000 ( at 50VDC )
Compensated temperature	°C	-10 ~+40
Operating temperature	°C	-35 ~ +65
Storage temperature	°C	-40 ~ +80
Element material		Nickel plated alloy steel
Ingress Protection (acc. to EN 60529)		IP67
Recommended torque on fixation	Nm	M12: 75	M18:500		M24:750
ATEX classification (optional)		II1G Ex ia II1C	II1D Ex iaD 20 T73°C		II3G nL IIC T4
