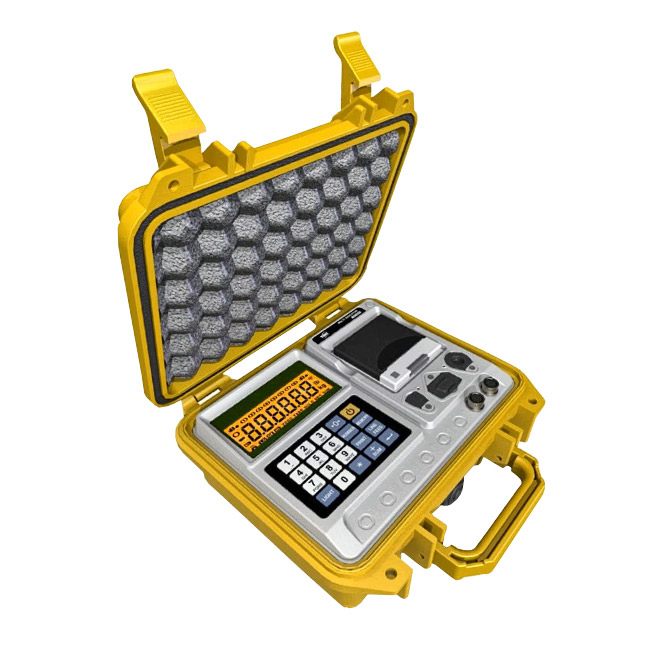

TMT TXI 500 T Axle Load Scale Indicator

Name: TMT TXI 500 T Axle Load Scale Indicator
Brand: Petra Mechatronics
SKU: 2702
Availability: InStock
Rating: 5 (1 reviews)

TMT’s Wireless / WiredType Axle Load Scale Indicator, which is called the ‘TXI’ is equipped with an LCD display (also with Backlight functions) on a box with various keys and uses a Lead Acid Battery Pack that is easy to replace and is charged easily.

Features:

Wireless Axle wheel/Container Indicator

Dynamic and static weighing
Built in thermal printer
Memory for 10,000 Truck
USB, RS232 interface
Rechargeable battery
LCD display with backlight
Up to 12 Platforms for Wireless and 8 for wired
Over Load Protection and alarm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

The world trend toward an Axle Load Scale with Cable Type has been changed into an Axle Load Scale with Wireless Type because it is easy to set up and convenient to maintain. The Wireless Type Axle Load Scale is getting spread out widely around the world. TXI-500F Indicator can share data with the platform by using Zigbee Wireless Communication and it has a huge memory in which you can store information of over 10,000vehicles, since it is equipped with a printer, you can print whenever you want to. In addition, RS232C and USB Host is inside the indicator so, you can enjoy a variety of functions.

Portable Axle wheel Scale Indicator
Portable & watertight case
Indicators for measuring axle
Thermal printer is built in
Memory capacity : 10K vehicles
Standard RS232C
USB host (For USB memory stick)
Wireless communication by using ZigBee (F type)
Possible to use Weight-In-Motion mode and Static mode

Model	TXI-500T			TXI-500TF
Type	Load cell cable			Wireless
Display & Size	4.3 inch TFT-LCD(480 x 272)

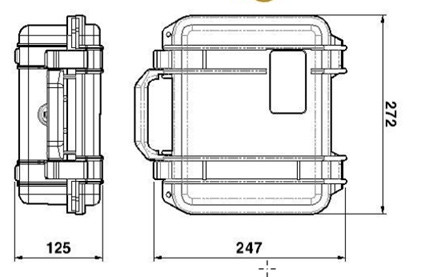

Product dimensions (W x L x H)	272 x 247 x 125 (mm)
Product Weight (approx.)	Approx. 4.5kg
Display lamp	Low battery, Stable, Zero, Platform number, Charging state
Operating Time	Approx. 70hr		Approx. 65hr
Temperature Range	-10℃ ～40℃
Battery	6VDC Lead-acid battery
Battery Life	Approx. 70hr
Printer	Direct line to thermal printer, paper Size : Ф40 x 57mm
Platform connection	Up to 8 platforms	Up to 12 platforms
Parts	Charging adaptor
Warranty	1 Year

Rechargeable Adaptor
