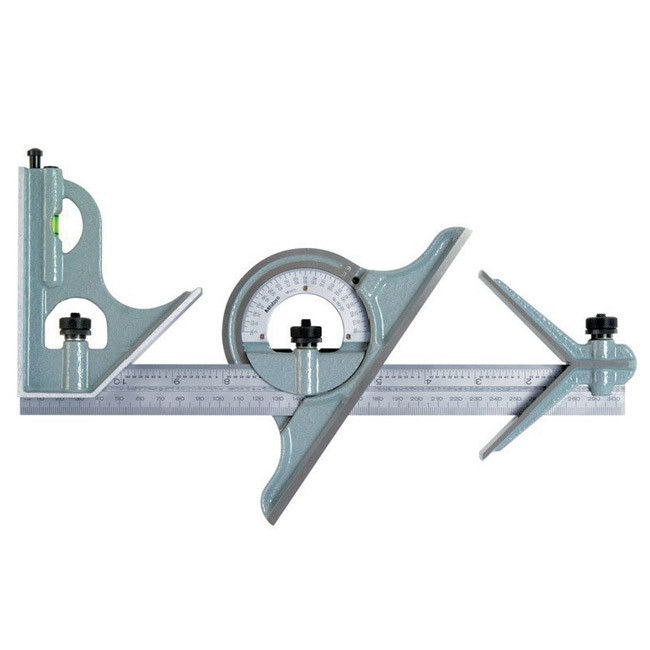

Mitutoyo 180 series Combination Square Set

Name: Mitutoyo 180 series Combination Square Set
Brand: Petra Mechatronics
SKU: 3774
Availability: InStock
Rating: 5 (1 reviews)

Mitutoyo Series 180 Combination Square Set is coming with three heads which is attachable to the stainless steel rule(blade), allowing versatile measurements on various types of work pieces.

Features:

Measuring head is attached to the graduated steel rule (blade), allowing versatile measurements on various types of work pieces
The measuring head comes hardened or cast iron-not-hardened
Inside Spring Caliper – Ends fully rounded to give accurate contact with a work piece.
Square head: Used to set the rule at 90 degrees or 45 degrees to an edge of a work piece.
Center head: Used to locate centers of round work pieces
Protractor head: Used to set the rule at a desired angle to an edge of a work piece. Also used for measuring angles.

Model Number	Size	Graduation
180-907U*	12” / 300	0.5mm

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

Mitutoyo Series 180 Combination Square Set is coming with three heads which is attachable to the stainless steel rule(bade), allowing versatile measurements on various types of work pieces.

Three measuring heads are attached to the stainless steel rule (blade), allowing versatile measurements on various types of workpieces
The measuring heads are hardened
Economy sets not including a protractor head are also available
Blades: 12″ length
Also used for measuring angles
Square, center, protractor heads are available

Size	Order No.	Graduation
12” / 300mm	180-907U*	1/32”, 1/64”, 1mm, 0.5mm

* 180-907U consists of blade, Square head (180-102U), Center Head (180-202U) and protractor head (180-301U)

Mitutoyo 180 series Combination Square Set
