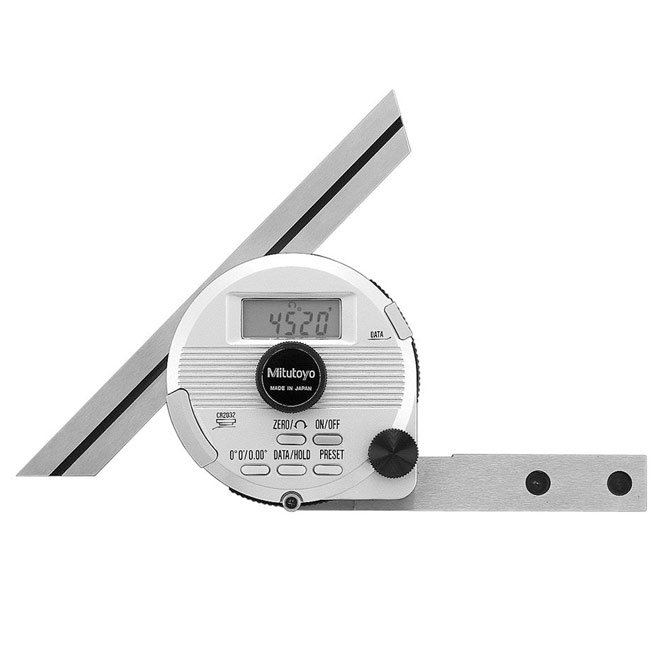

Mitutoyo 187 Digital Universal Protractor

Protractors are tools that measure specific angles, allowing users to create and replicate desired angles. They include a stationary base and a movable rule, connected by a digital or manual scale. The scale measures in degrees and may measure more precisely to minutes, with 60 minutes equal to 1 degree. Protractors are suitable for a wide range of applications, such as measuring crown molding and installing baseboards. The protractor includes an on/off button, zero button, preset button, and a hold feature to keep a measurement on the screen. The LCD screen accommodates five digits and a plus or minus sign, and it includes a low-battery indicator. Battery life is 2,000 hours. The protractor includes a fine-setting function for high precision, indicating up to 1 minute of arc. The blade is both lockable and removable. The protractor is made from stainless steel for corrosion resistance. It includes a data output feature that allows the user to quickly export statistical data. The tool can be attached to a height gage, allowing additional measuring capacity.

• Large digital LCD screen for precise readout measured in degrees and minutes
• Measures different angles quickly with two directions (clockwise and counterclockwise) and a 360-degree range
• Fine-setting function provides high precision with resolution to 1 minute of arc and accuracy to 2 minutes of arc, with lockable 12″ measuring blade
• Data output function for statistical data recording
• Stainless steel body for corrosion resistance
• Range: -360° to +360°
• Tolerance: ±2′ (±0.03°)
• Repeatability: 1’
• Resolution: 1’ (0.01°)
• Battery: Lithium Battery
• Battery life: 2,000 hours.
