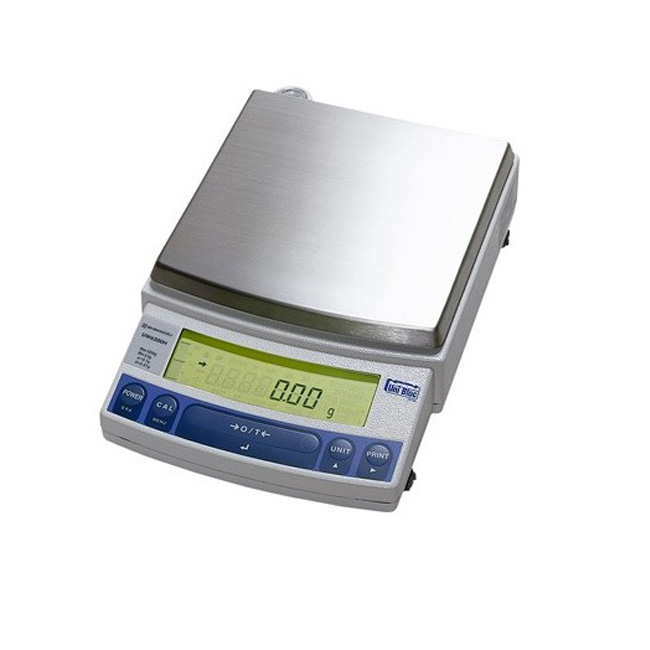

Shimadzu UX Series Precision Balances

Name: Shimadzu UX Series Precision Balances
Brand: Petra Mechatronics
SKU: 2815
Availability: InStock
Rating: 5 (1 reviews)

Precision Balance Shimadzu UW/UX Series resolution achieves a minimum display accuracy of 1 mg for 1,020 g.

The large pan easily accommodates samples extending beyond the pan. A built-in weigh-below hook allows weighing even unusually over-sized items.

Features:

Precision Scale
Direct touch-key calibration
GPL/GMP/ISO calibration record
Standard Below-Weigh Hook option
Function: TARE, Zero, Auto Zero, Auto Power off, percentage weight, multi weighing units, basic PCS counting, print, environment adjust and more
Counting function with storing sample details
Multi units: grams (g), weigh in %, number of pieces, ct, kg, mg, lb, oz, TTI, etc. or a custom conversion more than 20 unit in all
Shimadzu UniBloc sensor technology
Windows-Direct Communication Function; Very easy that Only a cable is needed to send weighing data to a computer
Continuous data output function
LCD display with adjustable contrast and illumination
Analog Bar Graph Display
Comparator (Pass/Fail Judgment) with Buzzer Support
RS232C interface
Power: AC adaptor (DC12V, 1A )

ADD TO CART to buy or to Request for Quotation (RFQ)

GET QUOTATION

The new line of Shimadzu top-loading balances are engineered with the innovative UniBloc mechanism which brings superior impact resistance unrivaled quick response, excellent stability and durability at the same time. Powerful features support any imaginable weighing application. UW Series comes with motor-driven built-in calibration weight and fully-automatic calibration functions. The standard animal-weighing mode allows accurate weighing of moving animals. It also gets the balance ready for the next animal without having to clean the pan each time. An optional animal bucket is available. The ultra-fast response reduces operator stress and shortens work time. UniBloc technology significantly enhances stability and durability, ensuring reliable weighing results over repeated operations. If a weighing record is required, the standard auto print function can automatically output data each time a weighed sample is placed on the balance. In addition, all settings and functions can be controlled from a computer for compatibility with automated production-line operation. The stainless-steel pan can be easily removed for washing. The metal housing is resistant to organic solvents. A clear, molded in-use cover is standard.

Precision Scale
Available capacities: 4.2 Kg, 6.2 Kg, 8.2 Kg
Automatic Span Calibration
GLP/GMP/ISO Calibration Record
Data Management
Windows Direct function
Fast response
Excellent Durability
Automatic Touch Key calibration (For UW Models)
Unit conversion
Piece Counting function
Check weighing function
Specific gravity measurement
Weigh below hook
Analog display modes
LCD with backlight

Model	UX4200H	UX6200H	UX8200S
Capacity x Readability	4200 gm 0.01 gm (10 mg)	6200 gm 0.01 gm (10 mg)	8200 gm 0.1 gm (100 mg)
Repeatability	0.01g	0.01g	0.08
Linearity	±0.02g	±0.02g	±0.1g
Response Time	1.5 – 2.5 Seconds			0.7-1.2 Seconds
Ambient Temperature	5°C – 40°C 30-85% (No Condensation)
Temperature Coefficient Sensitivity (ppm/C)	±3		±5
Keys	Power, CAL, Zero / Tare, Print, Menu/Enter
Functions	WindowsDirect GLP/GMP/ISO conformance, Analog display, % display, PCS, User unit, Animal weighing, Specific gravity measurement S/W, Checkweighing
Display & Size	LCD With Back light Display
Weight Units	g,mg, kg, ct, ozt, dwt, GN, HK tael, SG tael, TW tael, MTl,m,0,B,S,Ks,Tmom,lb,oz
Data output	RS232C
Weight calibration	External
Power	DC, 10 to 15.5V, 500mA

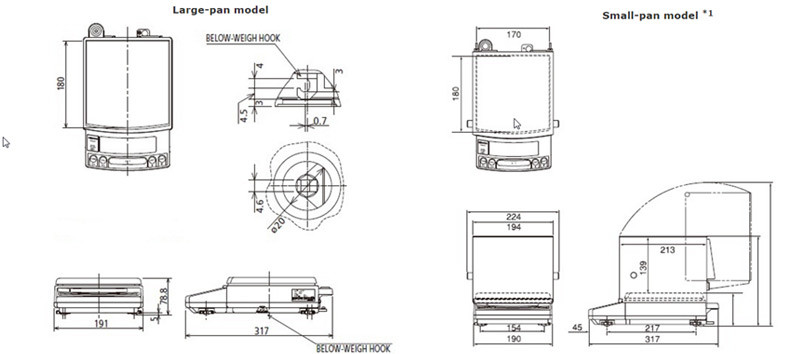

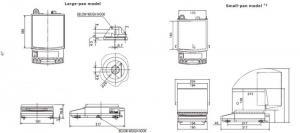

Pan Size	170 x 180 mm
Pan Dimensions (mm)	190W×317D×78H
Product Weight (approx.)	2.9 Kg
Warranty	1 Year

Shimadzu UX Series Precision Balances
